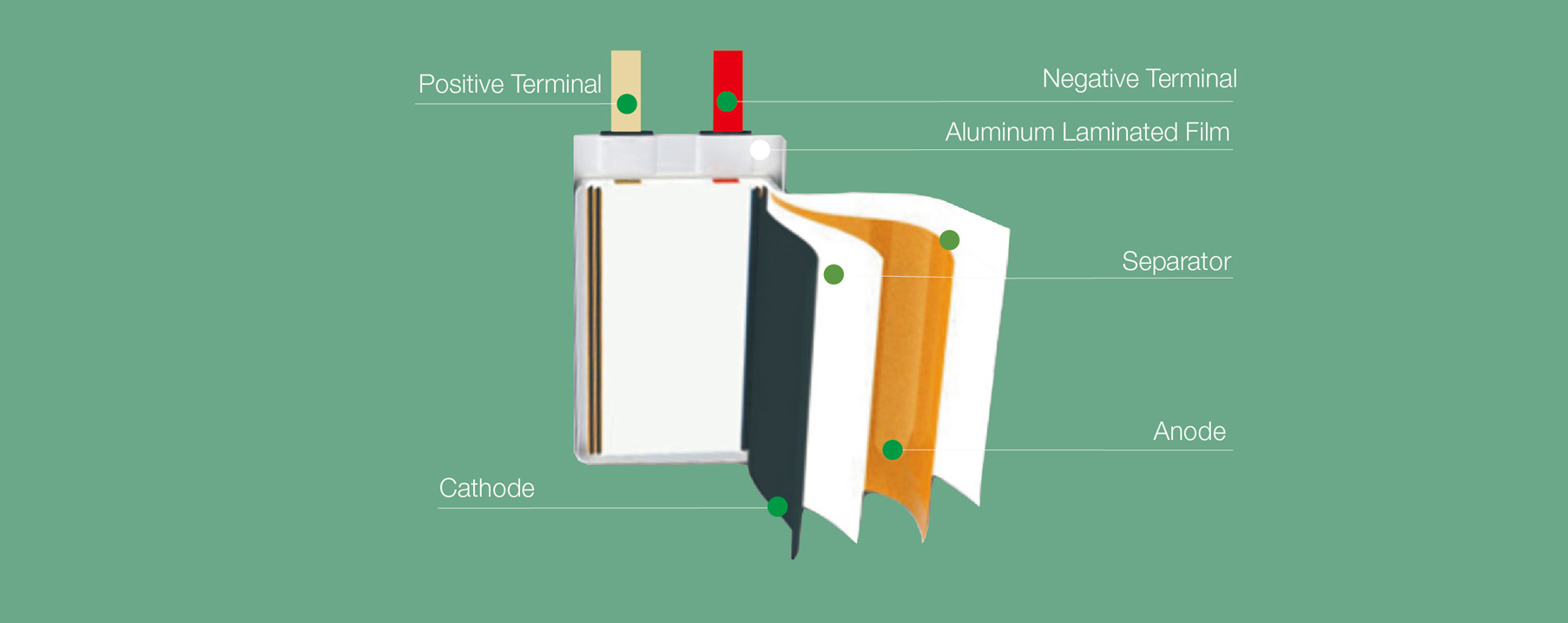

Soft pack lithium manganese dioxide battery Main Features
High voltage The rated voltage of the single battery is 3.0V and the specific energy is high. The actual specific energy of the battery can reach 450wh / kg. Under the same weight, the capacity is more than 50% higher than that of the steel shell lithium battery.
Wide working temperature range It can work between - 40 ℃ ~ + 70 ℃, and some high-temperature models can work between - 40 ℃ ~ + 80 ℃.
Long storage life Under normal temperature, the storage life of the battery is more than 10 years. Under normal temperature (23 ℃± 2 ℃), the annual self discharge rate of the battery shall not exceed 2%.
No voltage hysteresis
The shape can be customized to meet the diversified requirements of modern electronic products
Lithium metal battery with high safety and reliability
ProductsSwipe Right to Browse the Full Table
National standard International standard Dimensions (mm) Weight(g) Rated voltage(v) Rated capacity(mAh) Standard discharge(mA) Maximum continuous current(mA) Maximum pulse current(mA) Details
CP1003742 10.2*39*44mm about26g 3.0V 4000mAh 1.0mA 1500mA 2000mA Details
CP405060 4.2*52*62mm about18g 3.0V 3000mAh 1.0mA 1000mA 2000mA Details
CP505050 5.2*52*52mm about22g 3.0V 3000mAh 1.0mA 1500mA 2000mA Details
CP305050 3.2*52*52mm about12g 3.0V 1600mAh 1.0mA 600mA 1000mA Details
CP405050 4.2*52*52mm about18g 3.0V 2400mAh 1.0mA 750mA 1500mA Details
